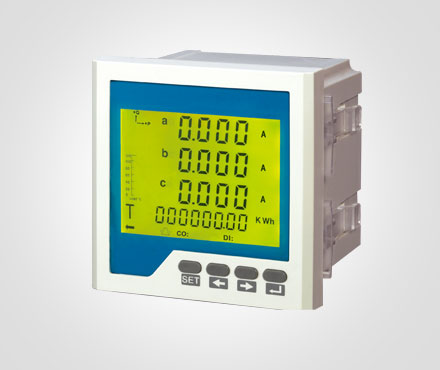

High-performance multi-function monitoring meter can measure real-time power parameters, harmonics,forward and reverse active/reactive energy and time of use energy with high precision, can timing read time ofuse energy, analyze power quality, display real-time waveform, record event and measure demand and isequipped with rich input and output interfaces to monitor and control status of on-site equipments. IntegratedRS-485 communication interface can work together with a variety of intelligent power distribution systems andenergy management systems, sharing a wealthof monitoring data and power quality data.

Multi-function monitoring meter has a very good price level and can be used to directly replace theconventional power transducer, measuring instruments, electric energy meter and relevant auxiliary unit. It hasa wide range of applications, such as energy management systems, power monitoring systems, industrial andmining enterprises, public facilities, intelligent buildings, power distribution switchgear and other networksystems.

GB/T 2264.1-2008 　 　      Mounted digital display electric measuring instruments-part1: Definitions and generalrequirements common to all parts

GB/T 2264.7-2008 　      　 Mounted digital display electric measuring instruments-part7: Special requirements formulti-function instruments

GB/T 2264.8-2008 　 　       Mounted digital display electric measuring instruments-part8: Recommended test methods

GB/T 17215.322-2008 　 　Electricity metering equipment (a.c.) - Particular requirements - Part 22: Static meters foractive energy (classes 0.2S and 0.5S)

GB/T 17215.323-2008 　 　 Electricity metering equipment (a.c.) - Particular requirements - Part 23: Static meters forreactive energy (classes 2 S and 3 S)

DL/T 614-2007 　            　Multifunction electricity meterring equipment (A.C.)

GB 14287-2005 　          　Electrical fire monitoring system

GB 50045-95 　 　            Code for fire protection design of tall buildings

GB 50054-95 　             　Code for design of low voltage electrical installations

GB 50096 　                  　Design code for residential buildings

GB 13955-2005 　      　 Installation and operation of residual current operated protective devices

GB 50016-2006 　     　 Code of design on building fire protection and prevention

Naming meaning

Feature

Measure three phase voltage, three phase current, active power, reactive power, apparent power, power factor andfrequency with high-precision.

Measure forward and reverse active/reactive energy.

Measure and timing read time of use energy.

Measure total harmonic distortion (THD) and 2-31times odd harmonic components of three phase voltage and threephase current.

Provide LED or LCD display and local data query.

Visual menus, buttons easy to operate.

Programmable current and voltage transformation ratio.

Provide multiloop leakage current monitoring

Provide multiloop control nodes for alarm and trip control

Support the fire alarm and control to cut off power supply of failure point remotely

Support RS-485 communications and Modbus-RTU protocol.

Support digital input, digital output, analog transmission output and energy pulse output.

Easy installation, simple wiring, small quantities.

Wide range of AC/DC universal power supply: AC / DC 80V～270V.

Can complete a variety of communication software network in SCADA and PLC.

Technical Index

Accuracy Measurement

current 　　           class 0. 5

voltage　          　class 0. 5

active power　 　class 0. 5

reactive power　class 0. 5

power factor　　class 0. 5

frequency　　     ±0. 02Hz

active Energy　　class 0.5/class 0.2

reactive Energy　class 1.0/ class2.0

Input Measurement

Wiring　　　　　　single-phase、3-phase 3-wire、 3-phase 4-wire

Rated current　　　A C 5 7 . 7 V、A C 1 0 0 V、A C 2 2 0 V、A C 3 8 0 V

Rated voltage　　　A C 1 A、A C 5 A

Overload　　　　      Voltage:Sustained: 1.2 times; Instantaneous: 2 times/ 1s

　　　　　　　　   　Current:Sustained: 1.2 times; Instantaneous: 10 times/ 5s

Power consumption　　　Voltage: >300KΩ , Current: ＜20mΩ

Impedance　　               　Voltage: <1VA (per phase)，Current: <0.4VA (per phase)

Frequency　　                 　45～65Hz

Power supply

Working range　　　　AC/DC 80~270 V

Power consumption　　< 4VA

Functional Module

Communication interface　　1 loop RS-485 Communication, MODBUS-RTU protocol

　　　　　　　　　　　  　　Baud rate: 2400 ~ 19200bps, Default: 2400bps

Switching value input　　　　4 loops switching value input, dry joint

Switching value output　　　 3 loops relay output, capability: AC 250V/5A，DC 30V/5A

Transmission output　　　　1 loop analog output: 0/4～2 0 m A o r 0～5 / 1 0 V

Energy pulse output　　 　　2 loops energy pulse output, constant: 8000

Environment

Operational environment　　　　　 - 1 0℃~ + 5 5℃

Storage environment　　　　　　　 - 2 5℃~ + 7 0℃

Relative humidity 　　　　　　≤9 3 %，in the place without corrosive gas

Height above sea level 　　　≤2 5 0 0 m

Safety

Insulation resistance 　　　　> 1 0 0 MΩ

AC withstand voltage 　　　　A C 2 K V

Electro Magnetic Compatibility

Electro-Static discharge　　　　　　　　 class 4

Electrical Fast Transient pulse train 　    　class 4

Electrical surge 　　　　　　　　　　　　class 4

Outline Dimension

External Dimension( m m ) 　　1 2 0×1 2 0；8 0×8 0；9 6×4 8；9 6×9 6；8 0×8 0；4 8×4 8；1 2 0 x 6 0；1 6 0 x 8 0

Cutout Dimension( m m ) 　　　1 1 1×1 1 1；7 6×7 6；9 2×4 5；9 2×9 2；6 8×6 8；4 5×4 5；1 1 4 x 5 6；1 5 2 x 7 6
