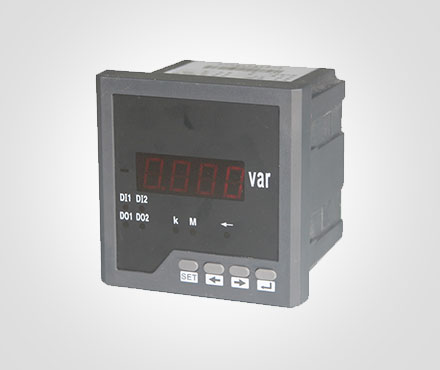

Feature

Measure active power, reactive power and apparent power of three-phase power grid with high-precision.

Provide LED or LCD display and local data query.

Programmable current and voltage transformation ratio.

Support RS-485 communications and Modbus-RTU protocol.

Support switch input, switch output and analog output.

Power supply: AC / DC 80V～270V 、AC 220V、AC 380V、AC 100V、DC 48V、DC24V

There are various choices of dimensions to meet the requirements of different electrical circuit enclosure.

Technical Index

Accuracy Measurement

Active power　　　　 class 0.5

Reactive power　　　class 0.5

Apparent power　　　class 0.5

Input Measurement

Wiring　　　　　　single-phase、3-phase 3-wire、 3-phase 4-wire

Rated value　　 　Voltage:A C 5 7 . 7 V、A C 1 0 0 V、A C 2 2 0 V、A C 3 8 0 V , Current :A C 1 A、A C 5 A

Overload　　　　　Voltage:Sustained: 1.2 times; Instantaneous: 2 times/ 1s

　　　　　　　　　Current:Sustained: 1.2 times; Instantaneous: 10 times/ 5s

Power consumption　　　Voltage: <1VA (per phase)，Current: <0.4VA (per phase)

Impedance　　　　Voltage: >300KΩ , Current: ＜20mΩ

Frequency　　　　45～65Hz

Power supply

Working range　　　　　A C / D C 8 0 V ~ 2 7 0 V、A C 2 2 0 V、A C 3 8 0 V、A C 1 0 0 V、D C 4 8 V、D C 2 4 V

Power consumption　　< 4 V A

Functional Module

Communication interface　　　1 loop RS-485 Communication, MODBUS-RTU protocol

　　　　　　　　　　　　      　Baud rate: 2400 ~ 19200bps, Default: 2400bps

Switching value input　　       　4 loops switching value input, dry joint

Switching value output　　    　3 loops relay output, capability: AC 250V/5A，DC 30V/5A

Transmission output　　　   　3 loops analog output: 0/4～2 0 m A o r 0～5 / 1 0 V

Environment

Operational environment 　　　　　　- 1 0℃~ + 5 5℃

Storage environment 　　　　　　　　- 2 5℃~ + 7 0℃

Relative humidity 　　　　　　≤9 3 %，in the place without corrosive gas

Height above sea level 　　　≤2 5 0 0 m

Safety

Insulation resistance 　　　　> 1 0 0 MΩ

AC withstand voltage 　　　　A C 2 K V

Electro Magnetic Compatibility

Electro-Static discharge 　　　　       　　class 4

Electrical Fast Transient pulse train 　 　class 4

Electrical surge 　　　　　　　         　     class 4

Outline Dimension

External Dimension( m m )　　　 1 2 0×1 2 0；8 0×8 0；9 6×4 8；9 6×9 6；8 0×8 0；4 8×4 8；1 2 0 x 6 0；1 6 0 x 8 0

Cutout Dimension( m m ) 　　  　1 1 1×1 1 1；7 6×7 6；9 2×4 5；9 2×9 2；6 8×6 8；4 5×4 5；1 1 4 x 5 6；1 5 2 x 7 6
